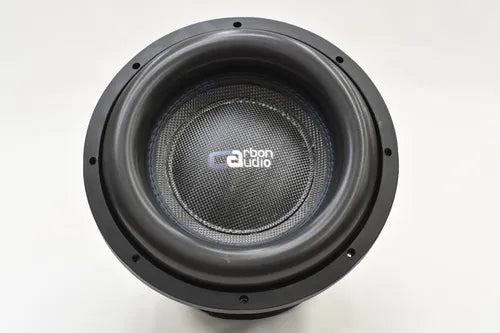

CA-S2200012X

Brand: Carbon Audio, ProMax series

Size: 12″

Typical Use: High-output car audio — SPL, demo, or loud daily systems

Technical Specifications

Power Handling

RMS: 2000 W

Peak: 4000 W

Voice Coil

Configuration: Dual 2 + 2 Ω

Diameter: 3.5″ (high-temp)

Magnet Structure

Uses “100 X 20 × 2 pcs” magnets per specs. (i.e., two magnets)

Cone / Suspension

Cone Material: Polypropylene

Designed for long excursion (good air movement + deep bass)

Physical & Mounting

Mounting Depth: ~23 cm (9″)

Dimensions: 39 × 39 × 33 cm (box / frame size)

Weight: ~25.05 kg

Performance Characteristics

Low-Frequency Response: Designed to push deep, powerful bass while maintaining clarity.

Power Flexibility: With dual coils you can wire for 1 Ω or 4 Ω, depending on your amplifier setup.

High Output: The combination of strong magnet structure and high power rating gives it strong SPL potential.

Durability: Polypropylene cone + robust coil design helps it withstand high-power use reliably
