Overview

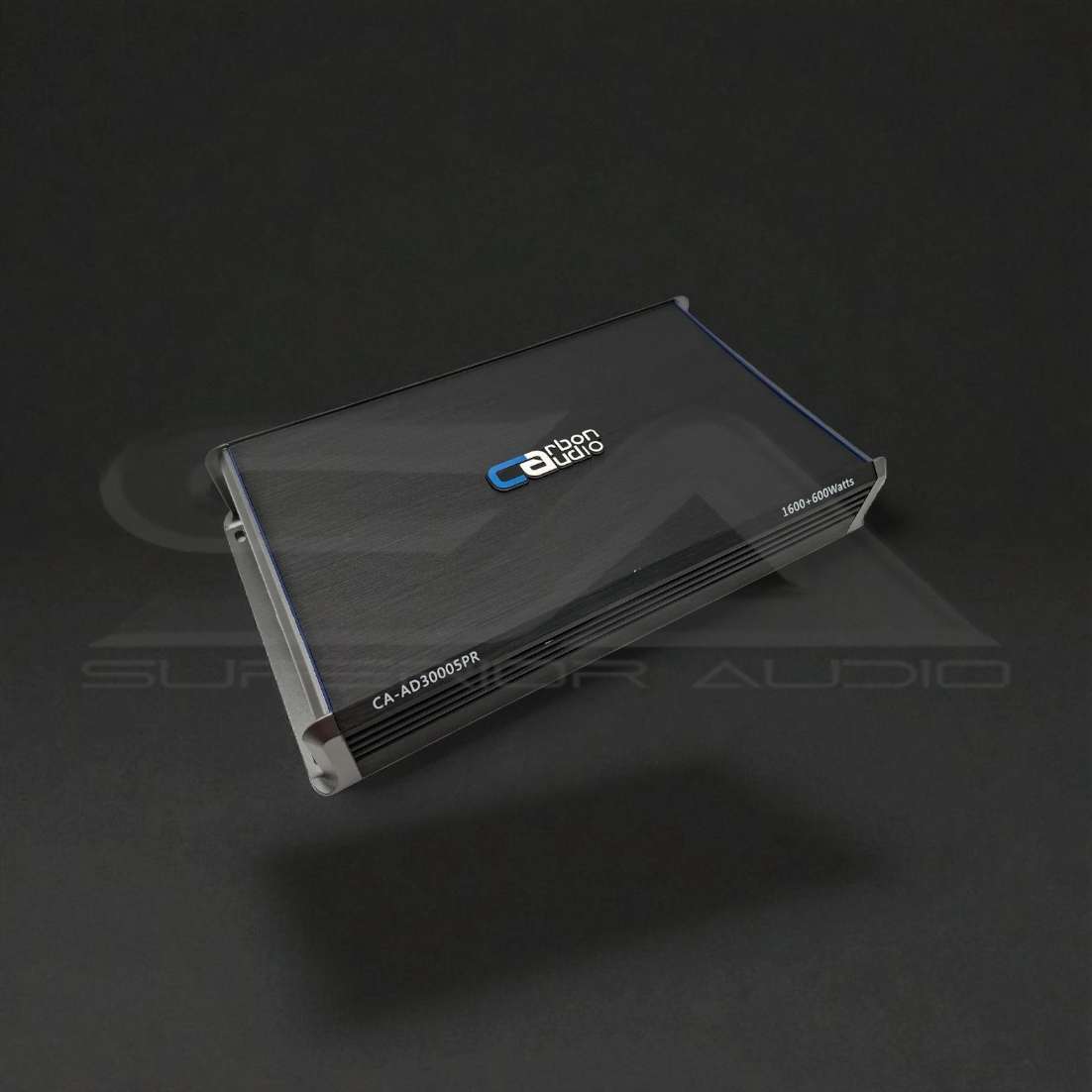

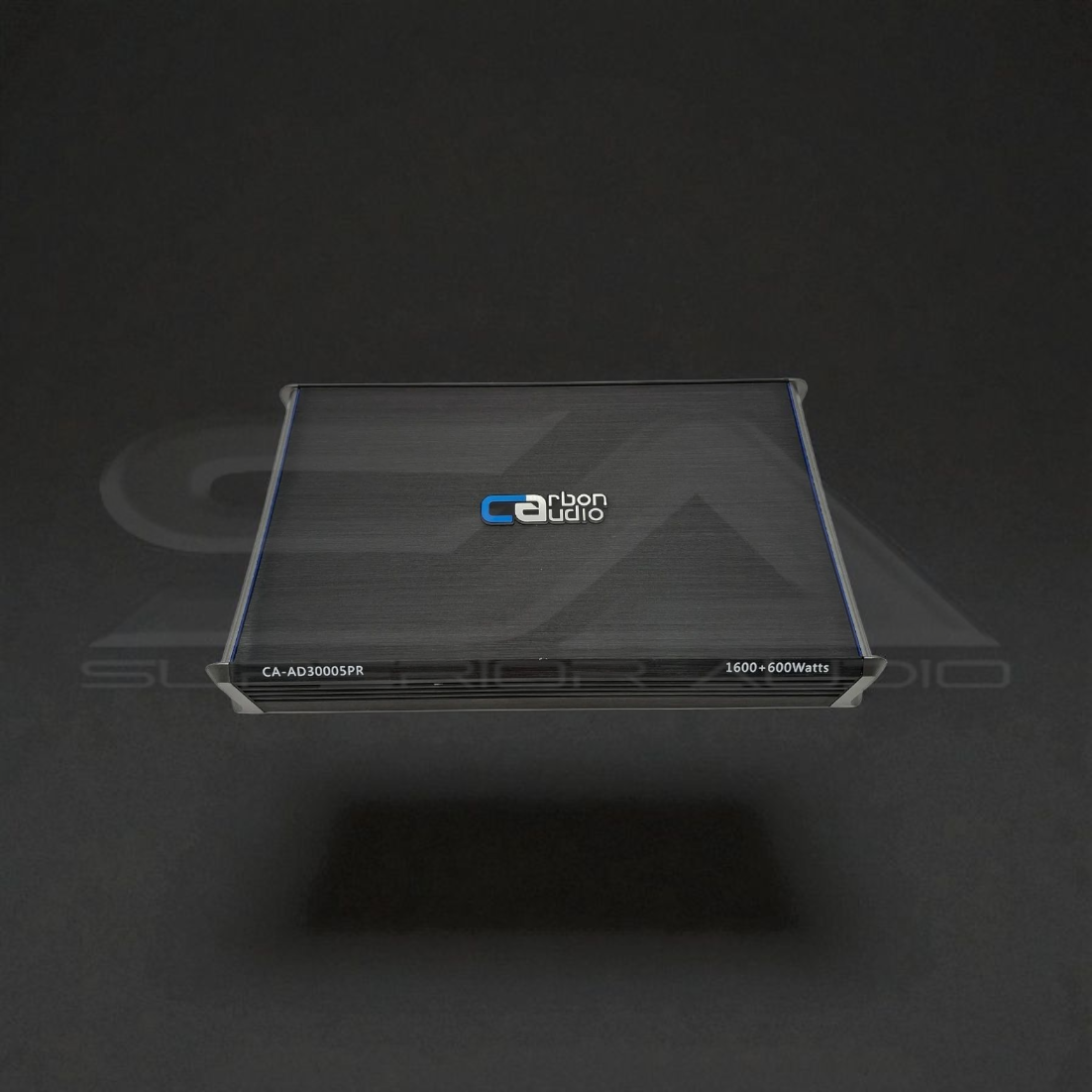

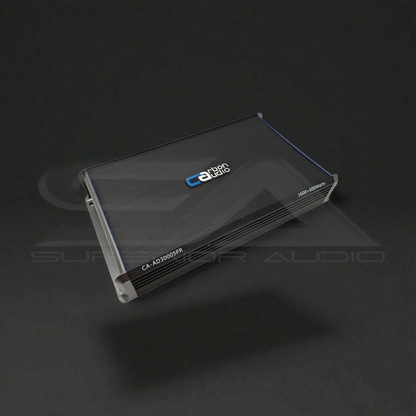

The CA‑AD30005PR from Carbon Audio is a 5‑channel Class D amplifier aimed at powering both multiple speakers and a subwoofer in a vehicle audio system. It’s part of their “PR” (Pro) line, offering multi‑channel flexibility in one unit.
---
⚙️ Key Specifications & Features
Here are the notable specs gathered from listings:
Configuration: 5 channels (i.e., 4 channels for full‑range speakers + 1 channel for subwoofer) according to one listing.
Class: Class D amplifier (for efficiency and smaller footprint)
Power/Impedance specs (as reported):

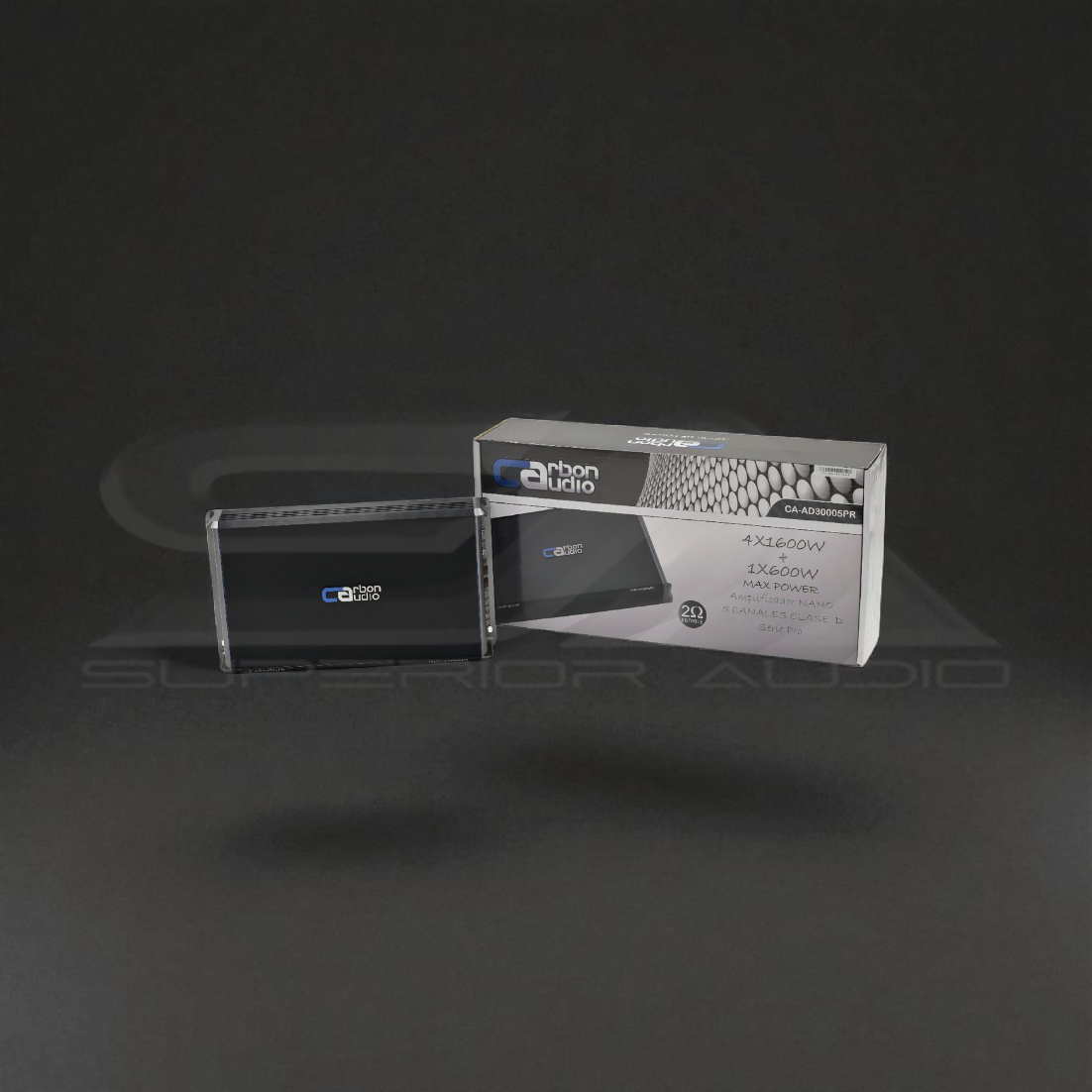

Max power marketing: “4 x 1600W + 1 x 600W” in one listing.
Nominal/RMS approx: At 4 Ω: 4 channels × ~80 W + 1 channel × ~300 W.
At 2 Ω: 4 channels × ~120 W + 1 channel ~300 W.
For the sub‑channel: 1 channel × ~500 W at 1 Ω in some listing.
Input sensitivity: ~200 mV‑6 V according to one listing.
Signal‑to‑Noise Ratio (SNR): Specified as >95 dB in one listing.
Dimensions: ~41 × 21 × 10 cm listed in one source.

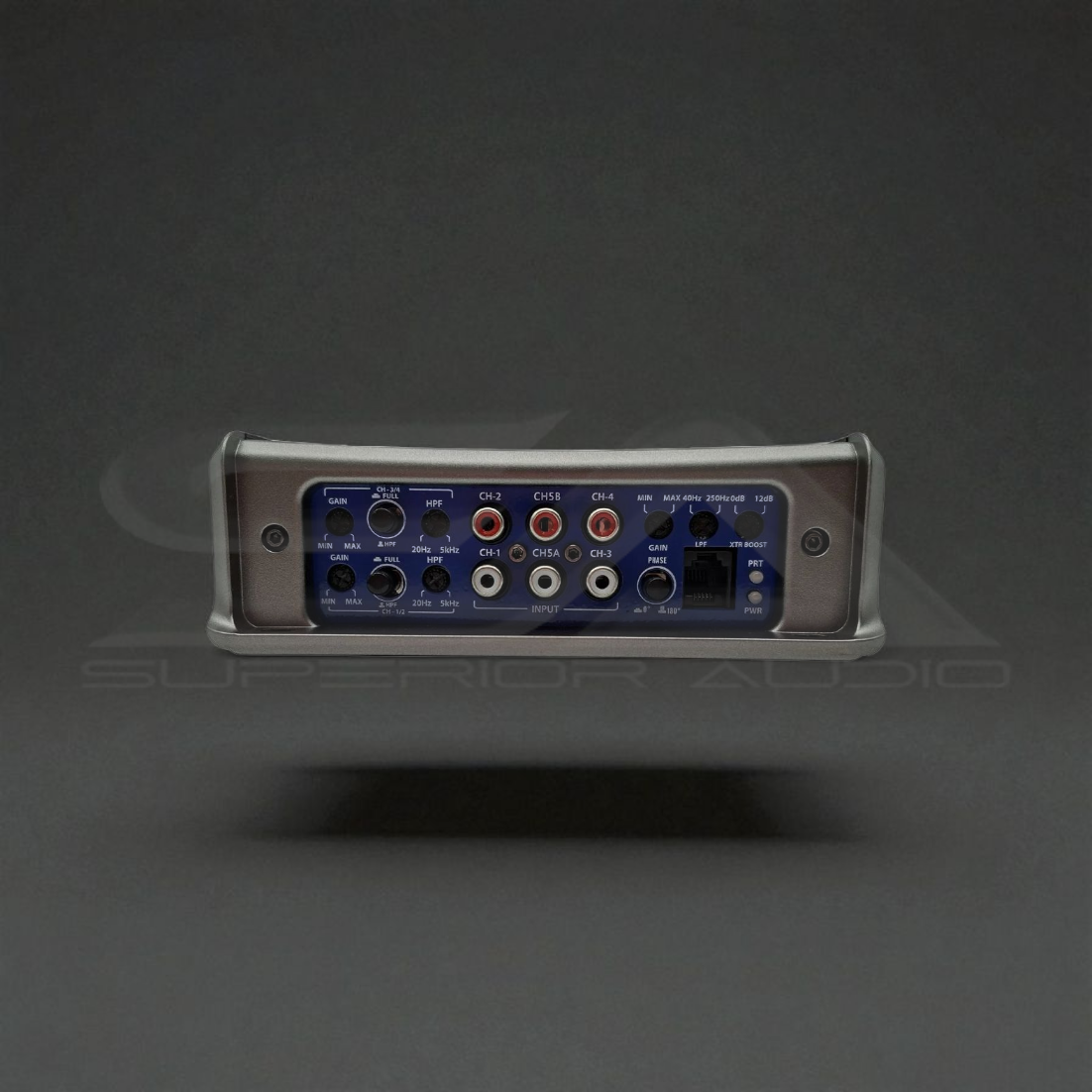

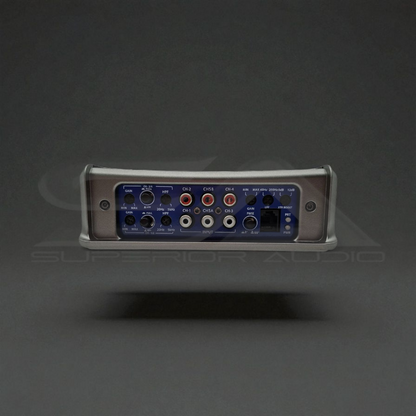

Multi‑crossover controls: HPF / FULL / LPF modes listed.
