Overview

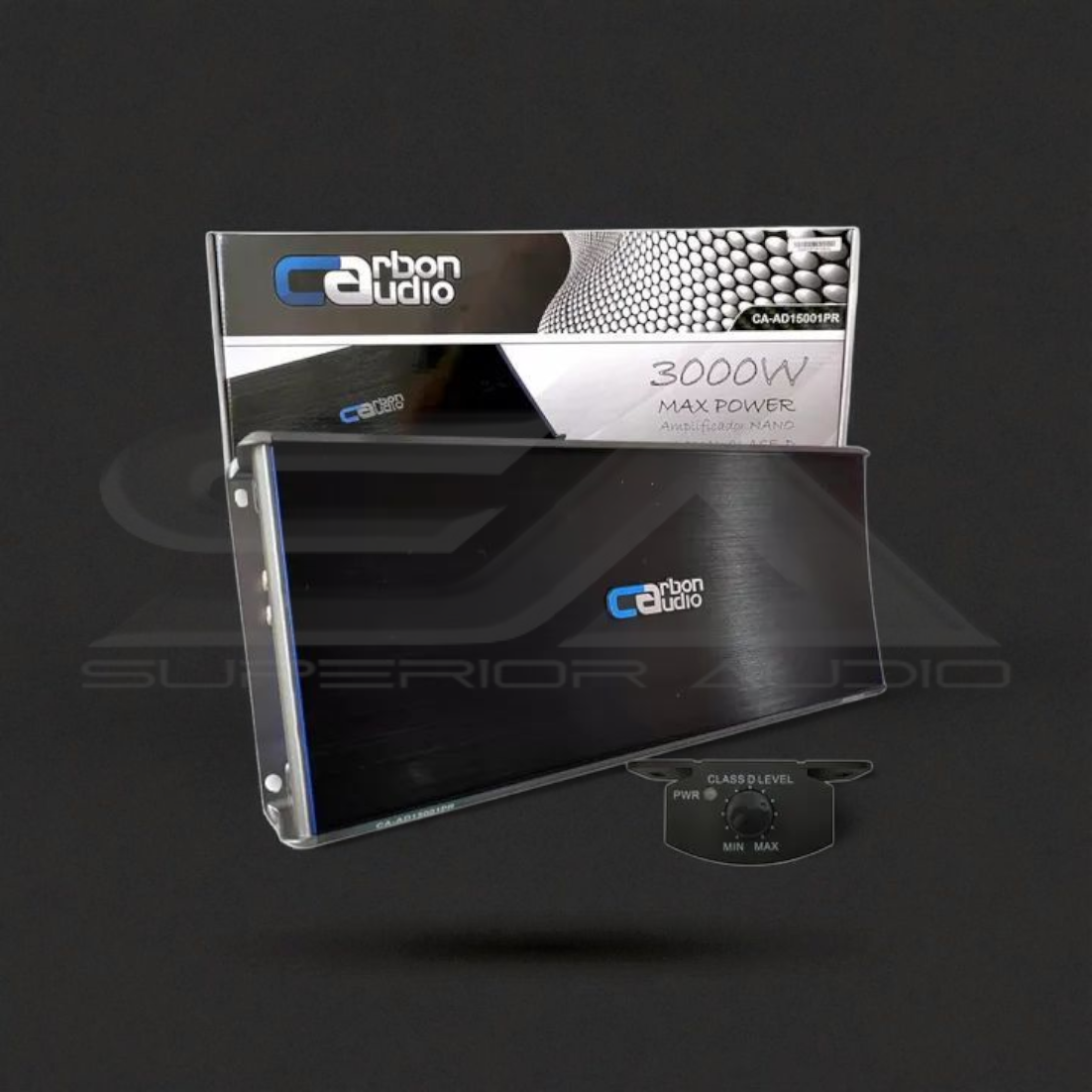

The CA‑AD15001PR is a mono (single‐channel) Class D amplifier designed for high‑performance car audio systems, especially for powering subwoofers. It delivers strong continuous power (RMS) at low impedances (e.g., 1 Ω), making it suitable for serious bass installations.
---
⚙️ Key Specifications & Features
According to product listings:
Configuration: 1 channel (mono) in Class D design.
RMS Power Output (listed):
~1,500 W at 1 Ω.
~1,000 W at 2 Ω.
~500 W at 4 Ω.
Operating Class: D (high efficiency)
Frequency Response / Filters:
Frequency range around 30 Hz – 80 Hz for the amplifier’s targeted audio band.
Low‑Pass Filter (LPF) range: ~40 Hz – 180 Hz.
Subsonic filter: ~0Hz – 50Hz.
Input Sensitivity: e.g., 0.2 V – 6 V or 200 mV – 5 V in some listings.
Signal‑to‑Noise Ratio (SNR): > 90 dB (or >95 dB in some specs) which indicates fairly clean output with low background noise.
Voltage Operating Range: Approximately 9 V to 16 V DC (typical for car systems) in various listings.
Dimensions (approx): ~36 cm × 16 cm × 6 cm (varies by listing) for the amplifier chassis.

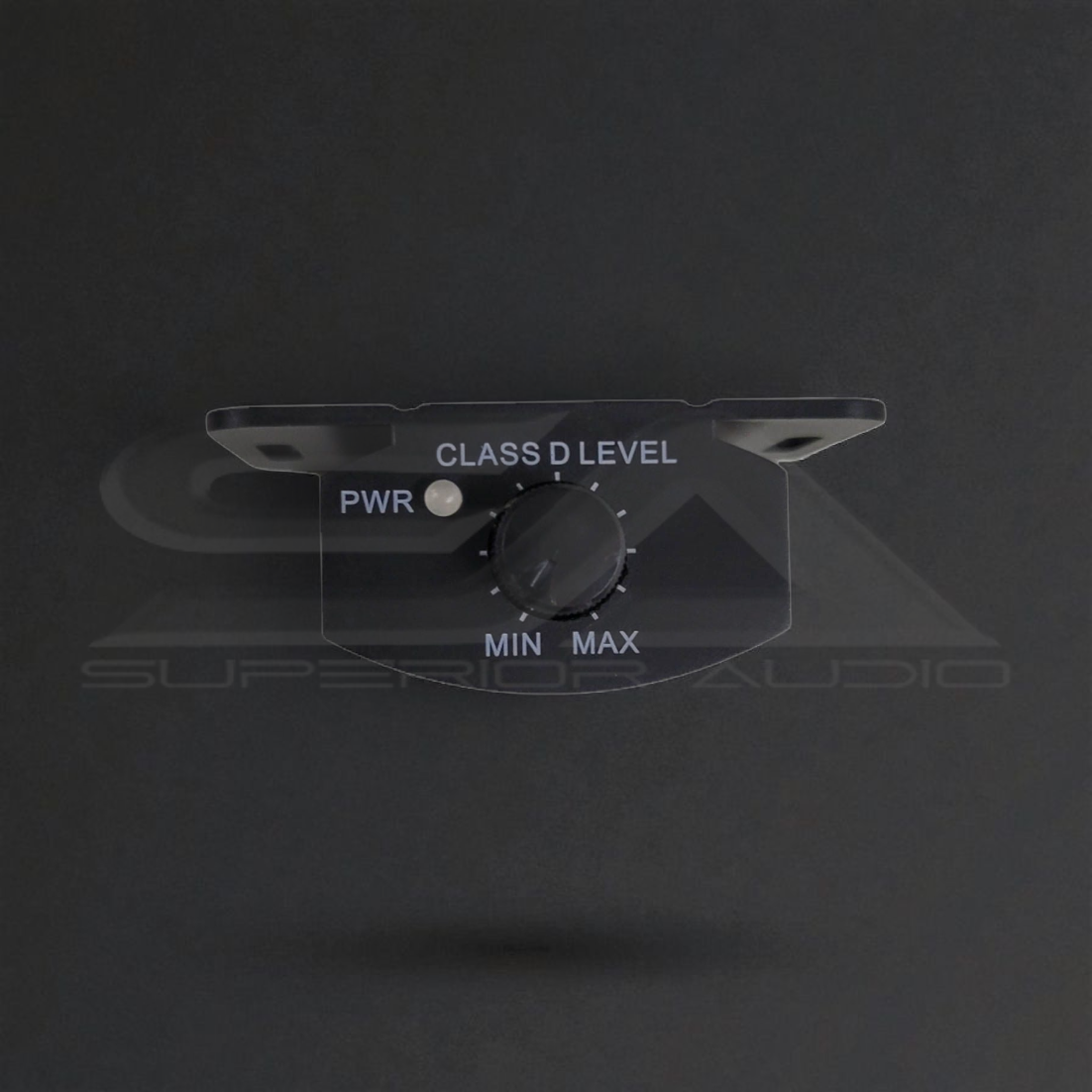

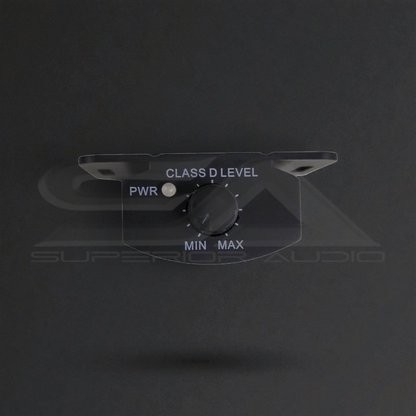

Included Accessories: Some listings mention included bass remote control (allowing adjustment of bass level from vehicle cabin).
