Overview

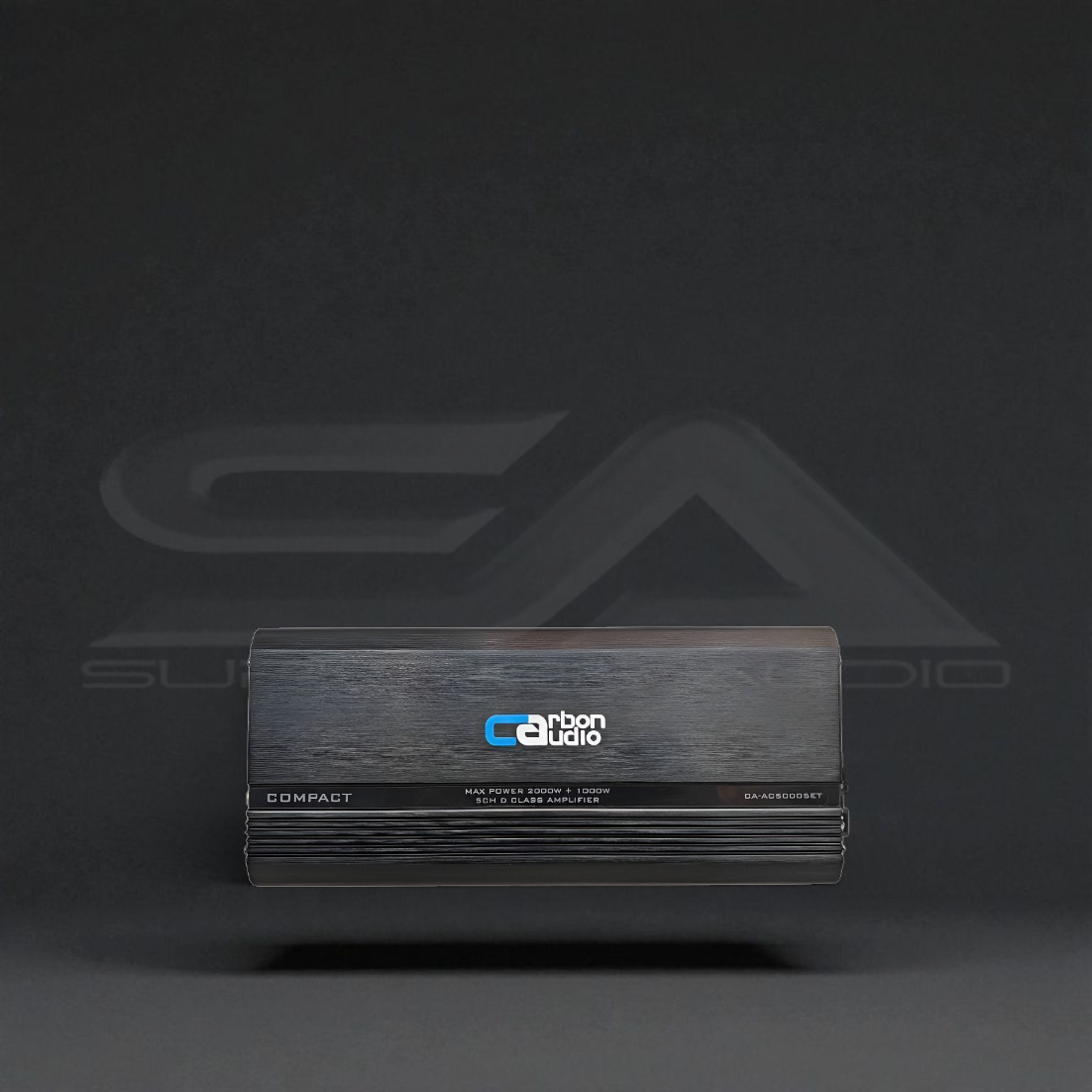

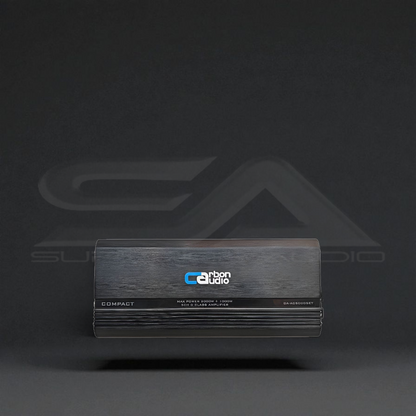

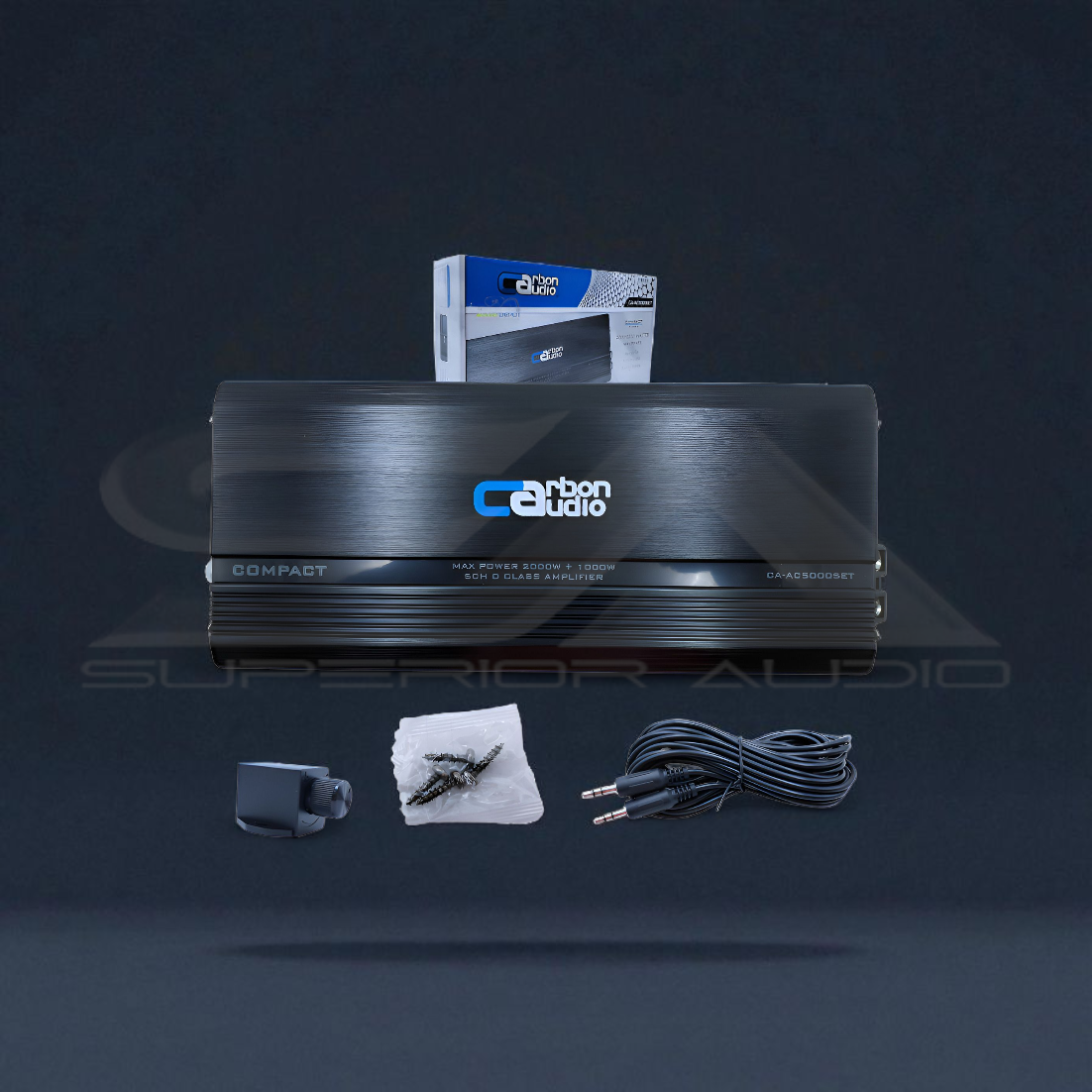

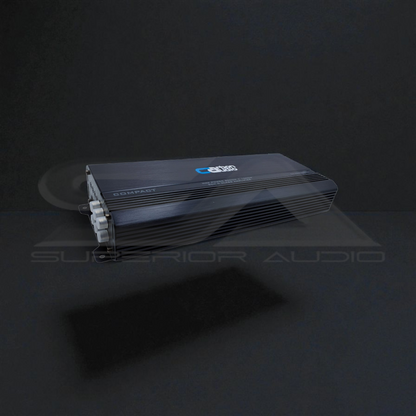

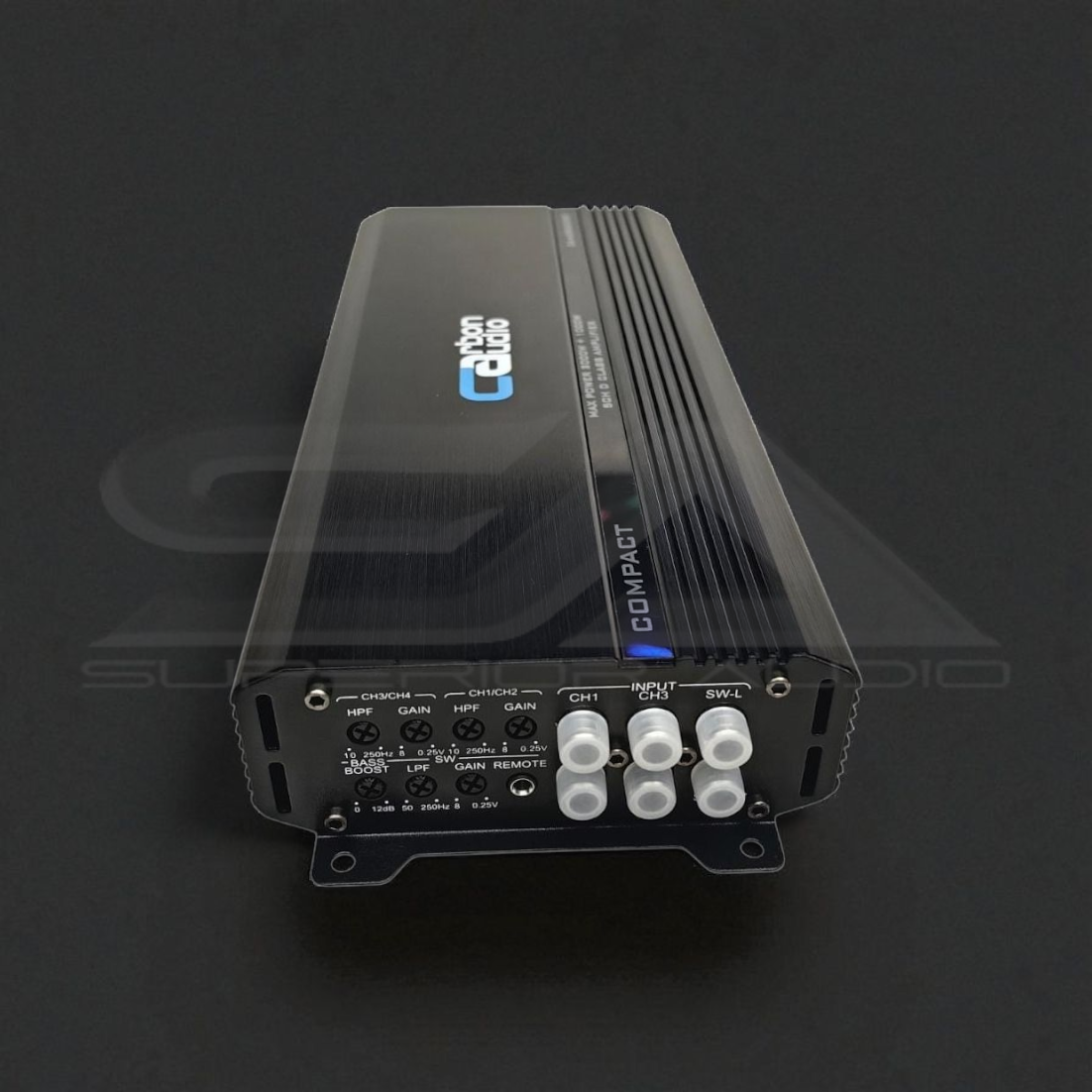

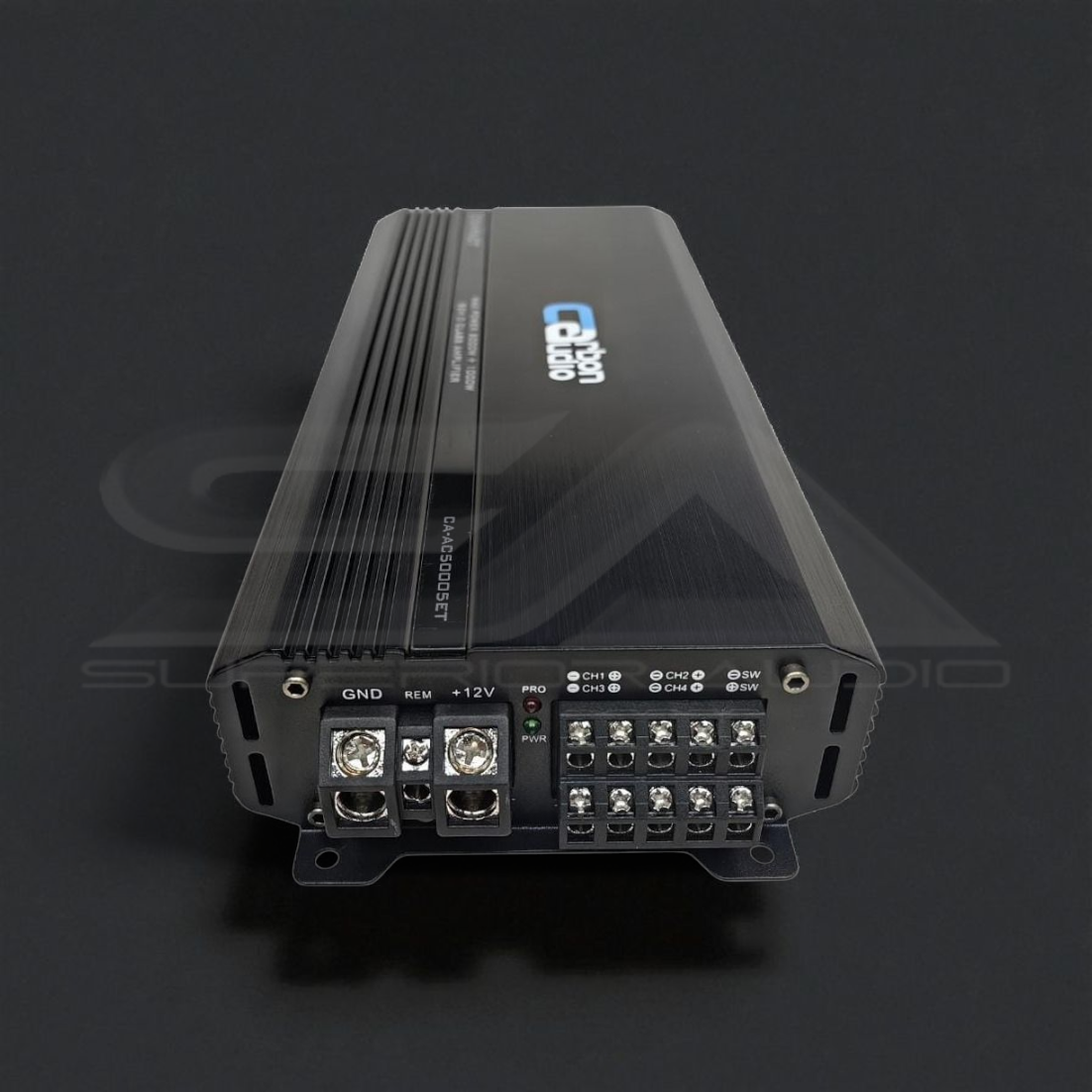

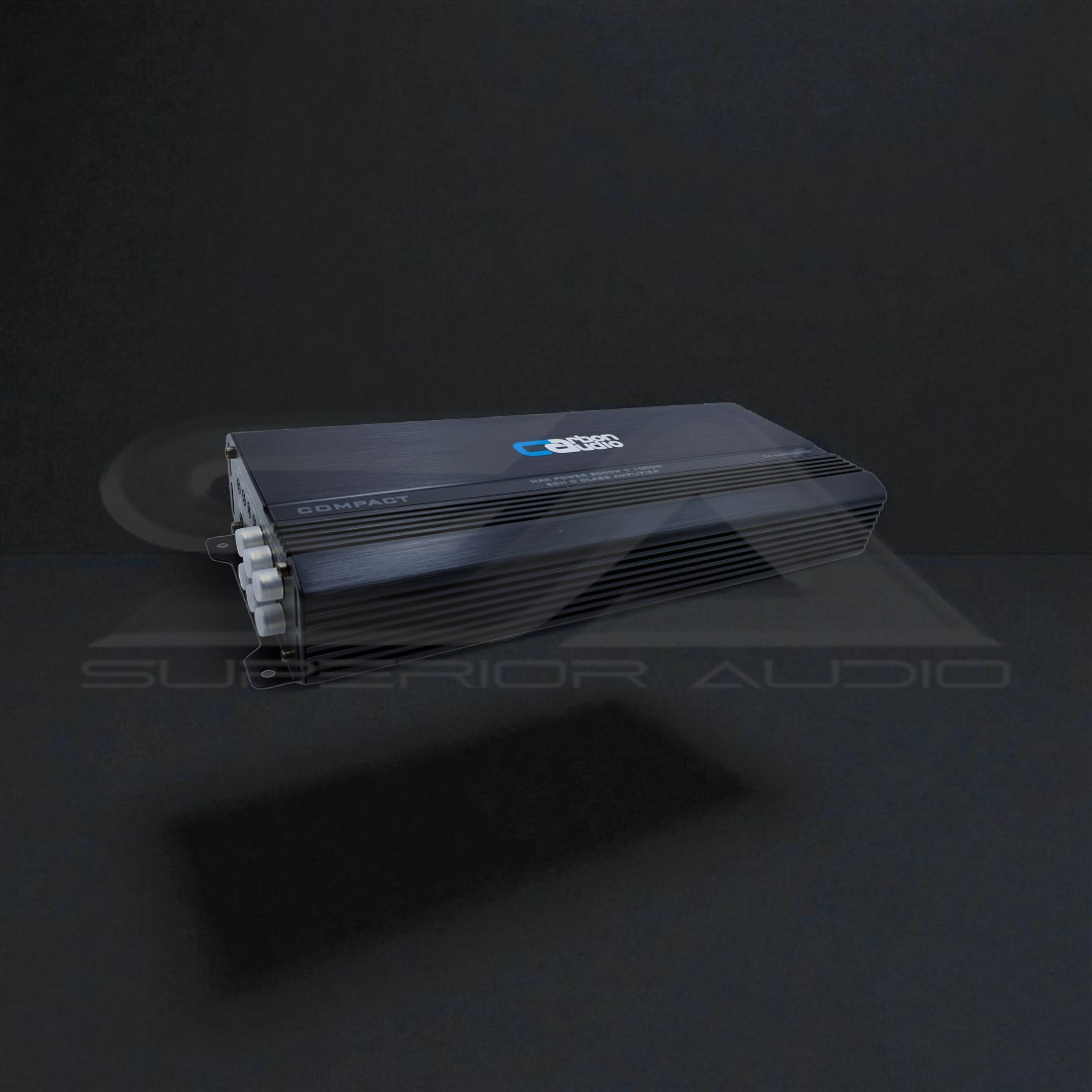

The CA‑AC50005ET is a 5‑channel Class D amplifier designed for comprehensive car audio systems that require multiple channels (for speakers) plus a dedicated sub output. Its “Compact” series design emphasises efficient power delivery and installation flexibility.
---
⚙️ Key Specifications & Features
Based on reported listings:
Configuration: 5 channels — 4 channels for speakers + 1 channel often dedicated to a subwoofer.
Class: D — efficient design for reduced heat and more compact installation.
Power ratings (as reported):
“Max power” ~5,000 W (marketing figure) according to some listings.
RMS example figures:
At 4 Ω: ~4 × 100 W + 350 W for the 5th channel.
At 2 Ω: ~4 × 150 W + 550 W for the 5th channel.
At 1 Ω: 5th channel ~800 W when lower impedance.
Input sensitivity: ~0.25 V – 6 V.
Bass boost: up to +12 dB (for the sub channel).
Operation voltage: ~9‑16 V DC.
Filters: Low‑pass filter for the sub channel; other channels likely have appropriate crossover control.
