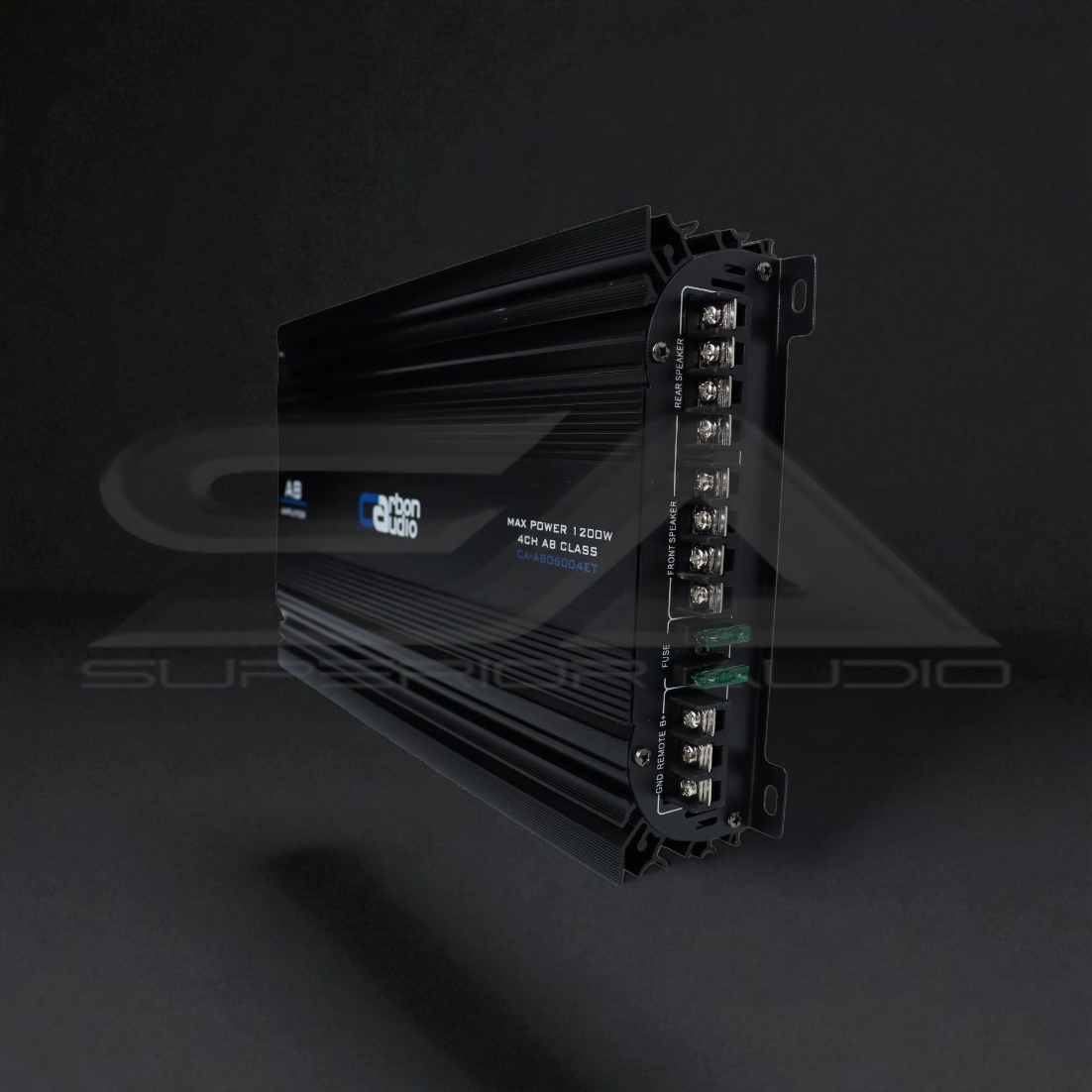

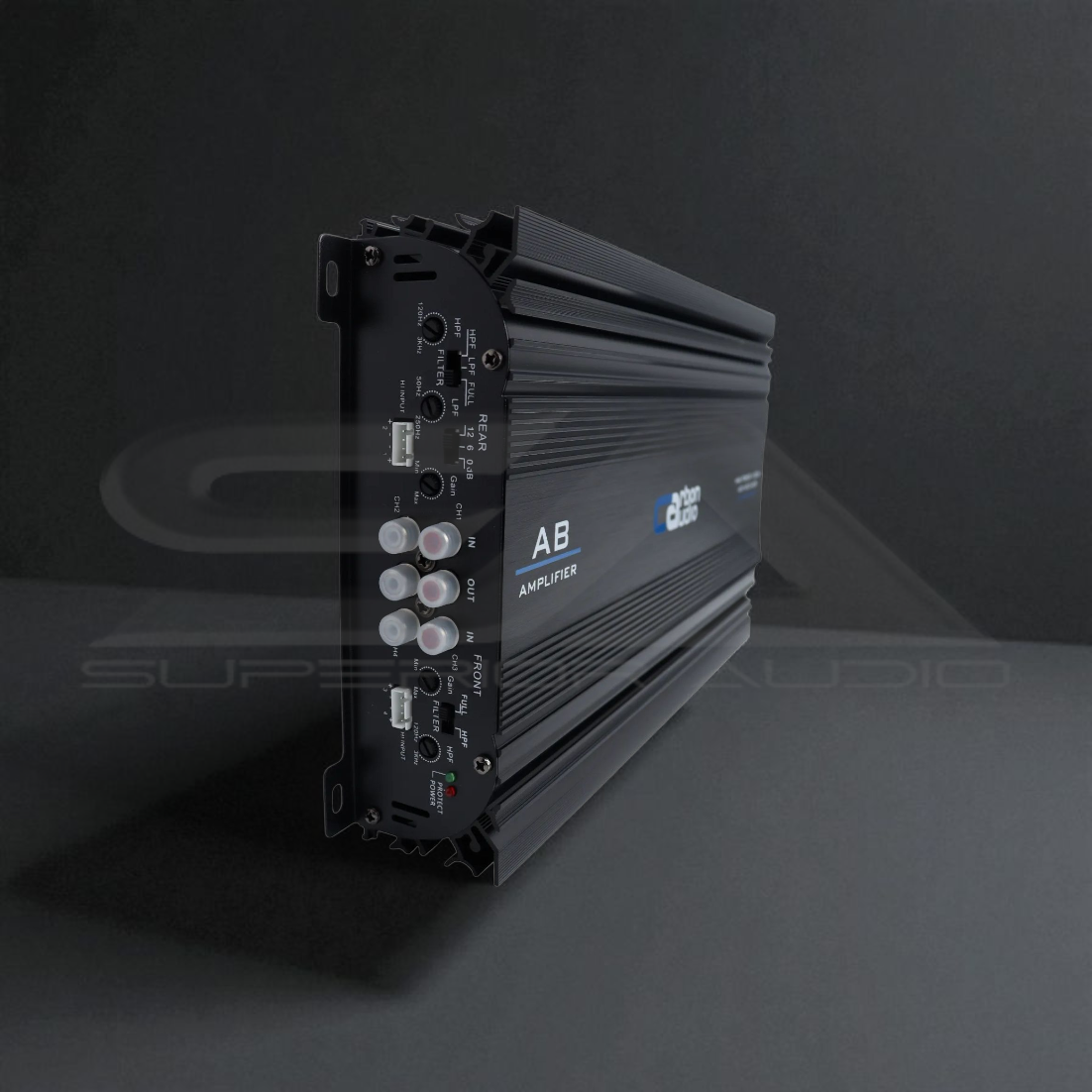

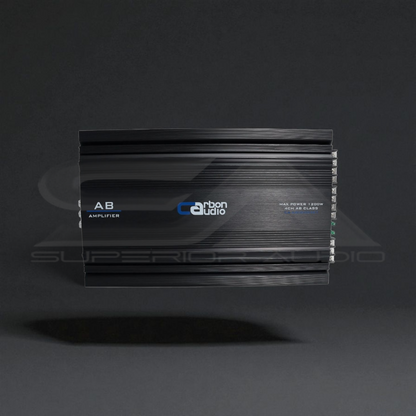

CA-AB06004ET

Overview



The Carbon Audio CA-AB06004ET is a Class A/B, 4-channel car amplifier built to deliver reliable power and versatile channel configuration for speakers and system upgrades. It offers solid performance in a compact form, making it well suited for both full-range speaker systems and bridged sub or mid-bass applications.





---



⚙️ Key Specifications & Features



Configuration: 4 channels.



Class of amplifier: A/B.



Power output (RMS):



4 × 60 W @ 4 Ω.



4 × 90 W @ 2 Ω.



Bridged mode (2 channels bridged @ 4 Ω): approx. 2 × 170–180 W.





Maximum/peak power: ~1200 W (as a marketing figure).



Filters & control:



Low-pass filter (LPF): ~40 Hz – 300 Hz.



High-pass filter (HPF): ~50 Hz – 1 kHz.



Bass boost: adjustable (0 dB / 6 dB / 12 dB) at around 45 Hz.





Additional specs:



THD: ~<0.05%.



Frequency response: ~20 Hz – 20 kHz.



Input sensitivity: ~0.2 V – 6 V.



Operating voltage: ~9-16 V.



Fuse rating: 2 × 20 A.



Physical dimensions: ~30.2 cm × 20.2 cm × 5.5 cm.









---



🎶 Use Case & Benefits



Ideal for powering four full-range speakers (front + rear) in a car audio setup, delivering consistent output across each channel.



Or use the bridging capability (2 channels bridged) to drive a pair of higher-power speakers or a subwoofer while still using other channels for full-range.



The Class A/B design offers a balance of audio fidelity and power, making it suitable for budget-conscious upgrades that still emphasize sound quality.



The built-in filters (HPF/LPF) and bass boost allow system tuning and flexibility: you can limit low frequencies for speakers or tailor subwoofer/bass channels.



Its relatively compact size (5.5 cm height) helps installation in tighter vehicle spaces (under seats, side-panels, trunk areas).







---



⚠️ Considerations & Installation Tips



While the RMS numbers (60 W/4 Ω, 90 W/2 Ω) are solid, they are mid-tier — this amp is not for extreme high-power systems but for moderate upgrades.



Ensure your wiring (power, ground, fuse) is matched correctly — even moderate amps benefit from good gauge wires and a clean ground connection.



Since bridging will push more current, ensure the vehicle’s electrical system (battery, alternator) can handle the load if pushing toward the upper limits.



Heat dissipation: Ensure good airflow and avoid burying the amp under padded areas; Class A/B still produces heat under load.



Matching speakers: Make sure your speakers can handle the RMS figures and impedance; avoid mismatches that could stress the amp or speakers.



Filter settings: Use HPF when driving mid/high speakers to avoid unnecessary low-end strain; use LPF & bridge if driving subwoofer(s) to isolate bass.







---



✅ Summary



The Carbon Audio CA-AB06004ET is a sensible 4-channel amplifier for someone looking to significantly upgrade their car’s audio system without going into ultra-high power territory. With support for full-range speaker pairs, bridging capability for extra output, built-in filters and bass control, it offers a lot of tuning flexibility. If your goal is to improve clarity, loudness and system control in a compact install, this amp is a good middle-ground option.
