CA-AB06001ET

Overview

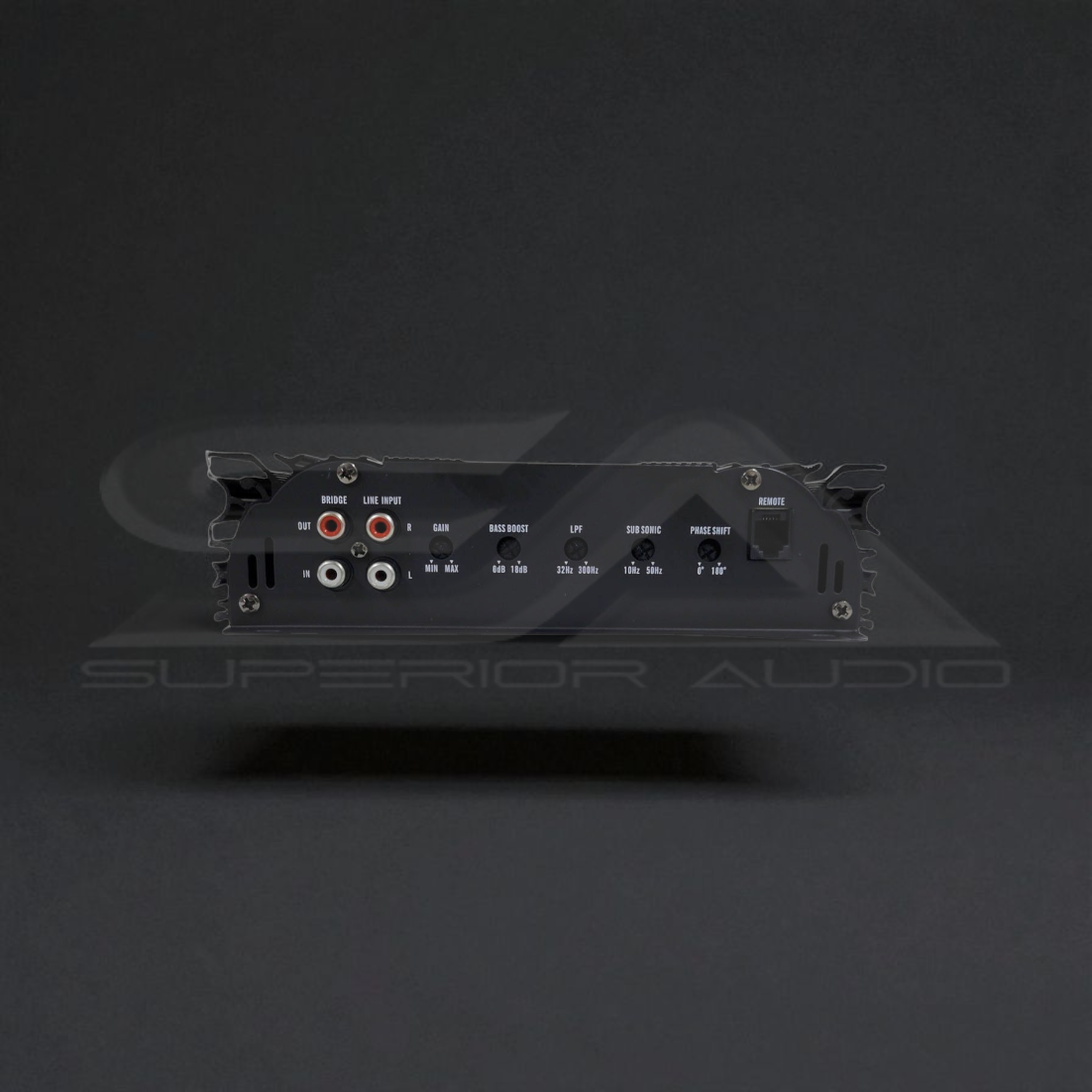

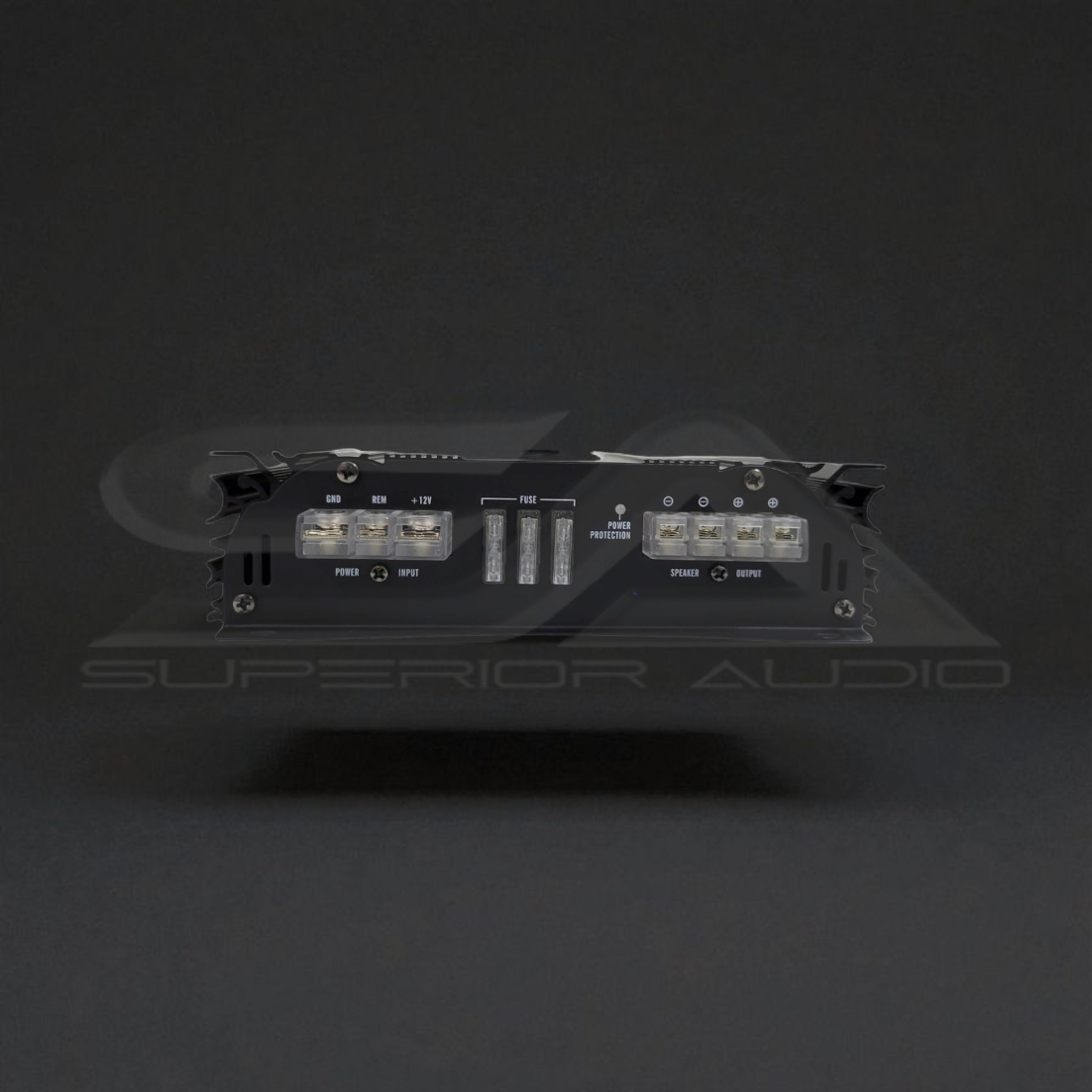

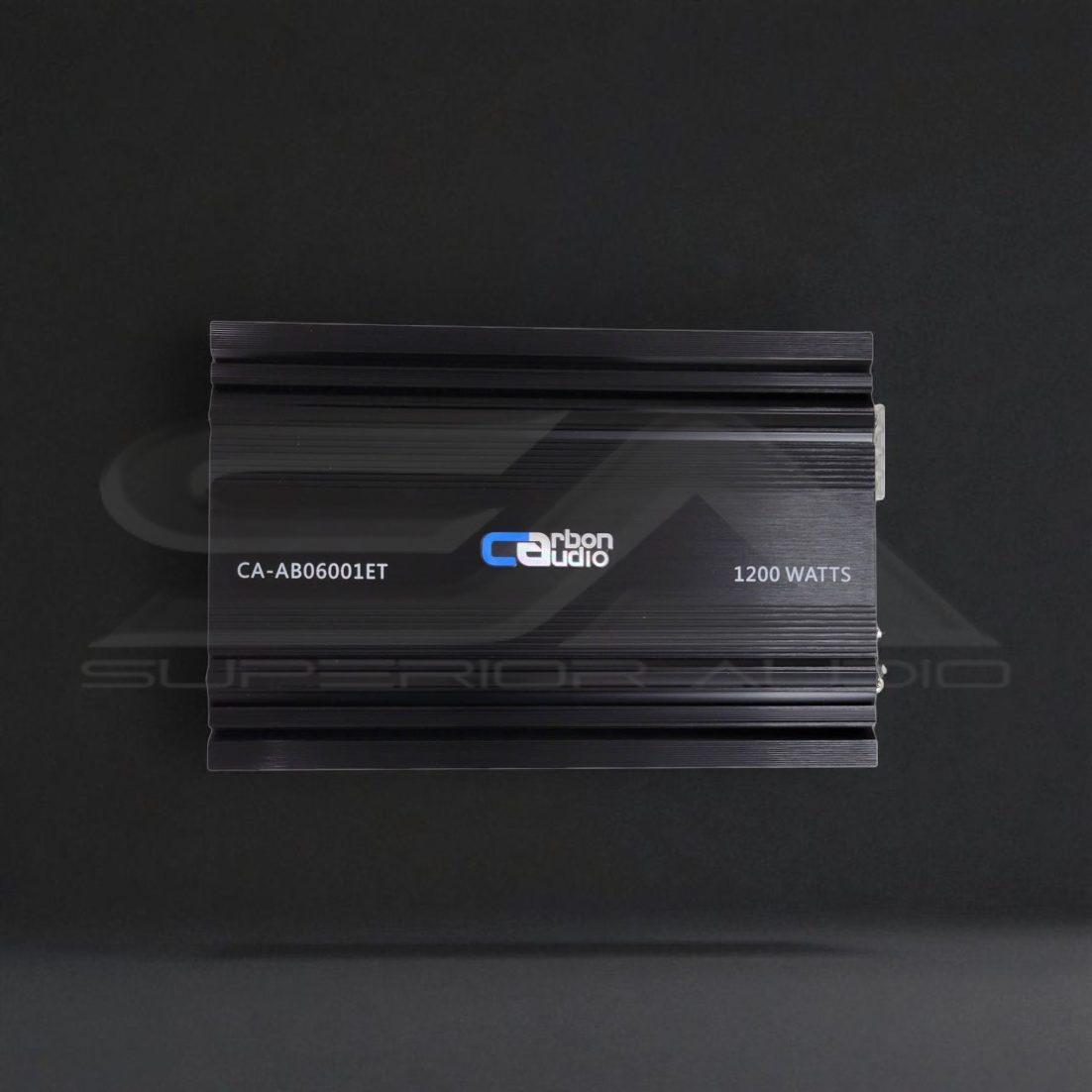

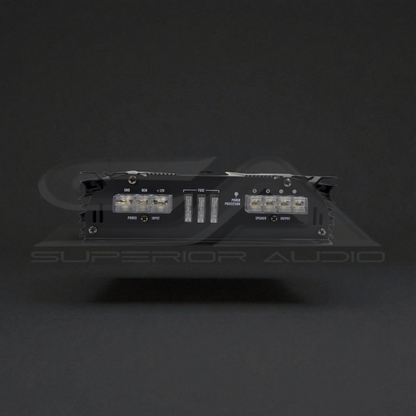

The Carbon Audio CA-AB06001ET is a high-efficiency Class D car amplifier designed to deliver strong, clean power for subwoofers or a dedicated single channel audio setup. With a compact footprint and flexible impedance ratings, it’s ideal for boosting low-end performance in your vehicle sound system.

⚙️ Key Specifications & Features

Configuration: 1 channel (monoblock) — for driving a single speaker/subwoofer.

Power output (RMS):

~150 W @ 4 Ω

~300 W @ 2 Ω

~600 W @ 1 Ω

Maximum power: ~1,200 W (peak) according to some listings.

Frequency response: approx. 40 Hz to 180 Hz.

Subsonic filter: 50 Hz (to protect subwoofer & system)

Bass Boost: +0 to +12 dB @ 30-80 Hz region.

Input sensitivity: 0.2 V – 6 V.

Protection features: Short-circuit, overload, overheating protections.

---

🎶 Use Case & Benefits

Ideal for a subwoofer: Because it’s a monoblock amp with high power at low impedance (1 Ω) it’s aimed at powering a subwoofer that demands real wattage.

Efficiency: Being a Class D amp, it offers good power efficiency—less heat, more compact install.

System tuning control: With subsonic filter, bass-boost and adjustable input sensitivity, you can tailor it to your vehicle’s audio system setup.

Flexible install options: Whether you have a lower impedance sub or want to run in more “standard” 2Ω / 4Ω setups, the amp supports it.

---

⚠️ Considerations & Installation Tips

Powering a 1 Ω load means high current demand: Ensure your vehicle wiring (battery, alternator, fuse, ground, power/ground cables) is up to the task to avoid voltage drops.

Speaker / sub compatibility: Make sure the subwoofer or driver you pair it with can handle the RMS power at the given impedance, and that the enclosure is suitable.

Cooling & ventilation: Even efficient amps generate heat. Mount it where there’s good airflow, avoid placing it under cramped seats without clearance.

Tuning carefully: Use the filters (subsonic & input sensitivity) to avoid sending unwanted ultra-low signals or overdriving the sub—this protects your gear and improves sound.

Grounding & wiring: Proper ground location and wiring gauge (power/ground) are critical to performance and stability.

---

✅ Summary

If you’re building a dedicated bass system or want a strong monoblock amp to power your subwoofer, the Carbon Audio CA-AB06001ET is a solid choice. It offers a compelling mix of power, tuning flexibility, and efficiency. Just make sure your install supports the demands of the amp (especially if you’ll run low impedances) and you’ll have a system capable of deep, strong bass performance.
